Air Cooling Die Face Pelletizing System

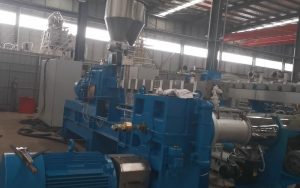

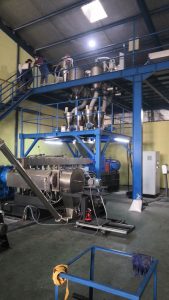

This system incorporates a tandem compounder. It is suitable for certain recipes, such as PVC, LLDPE, high filling masterbatch, degradable masterbatch, HFFR, WPC etc., which have a ring type and centrifuge type as per the property of the raw materials. The merit of this system is that it prevents materials from encountering water which is critical for certain materials.
This system includes die heads, air cooling pelletizer, air cooling conveyor and vibrating classifier.
Table of Contents
Main Parts
Die plate
- Extrusion die plate
Material: 38CrMoAlA with nitrify heat treatment.
The outgoing hole diameter: 3mm.
Holes number: 30, 60, 90.
Extrusion die plate for rigid PVC
Material: 38CrMoAlAr, with nitrify heat-treatment.
The strand outgoing holes diameter: 3 mm, 220holes.
With melt pressure and melt temperature sensor.
With heating.
Pelletizer
- Air cooling center pelletizer
Driving power: 1.5KW, 2.2KW, 3KW.
RPM controller: AC inverter.
With 4 pieces of cutting knives.
S.S. cover with water jacket for cooling.
- Air cooling eccentric pelletizer
Driving power: 4KW, with SCHNEIDER AC inverter.
The cutter structure: eccentric.
Capacity: 800kg/hr.
Stainless steel cover.
Conveying system
Conveying system:
2 sets of conveying blowers: 3KW, 4KW, 5.5KW.
Conveying Pipe material: stainless steel 304 with water jacket for cooling.
2 sets of cyclone separators with Vol.: 250L.
Material: stainless steel 304.
With water jacket for cooling.
Disassemble frame equipped.
Classifier
According to your requirements, we can provide more than 12 models classifier.
Please contact us to learn more.
Vibration conveyor for cooling
Temperature of input material is 60C.
Temperature of output material is 45C (Ambient temperature should be less than 30C).
Conveyor diameter: 400mm.
Height of input hole: 600mm.
Height of output hole: 3000mm.
Convey time from input to output: 4~5minutes
Cooling fan: 2.2KW.
Vibration motor: 2X0.55KW.
Convey channel made by 304 stainless steel, with the thickness 2.5mm
Temperature of input material is 60C.
Temperature of output material is 45C (Ambient temperature should be less than 30C).
Conveyor diameter: 600mm.
Height of input hole: 600mm.
Height of output hole: 4000mm.
Convey time from input to output: 4~5minutes
Cooling fan: 2.2KW.
Vibration motor: 2X0.55KW.
Convey channel made by 304 stainless steel, with the thickness 2.5mm
Temperature of input material is 60C.
Temperature of output material is 45C (Ambient temperature should be less than 30C).
Conveyor diameter: 800mm.
Height of input hole: 600mm.
Height of output hole: 4000mm.
Convey time from input to output: 4~5minutes
Cooling fan: 2.2KW.
Vibration motor: 2X0.55KW.
Convey channel made by 304 stainless steel, with the thickness 2.5mm
Storing silo
Silo Vol.: 1000L.
Material: stainless steel.
Disassemble frame equipped.
Silo Vol.: 1500L.
Material: stainless steel.
Disassemble frame equipped.
Silo Vol.: 2000L.
Material: stainless steel.
Disassemble frame equipped.
