Melt Blown PP Compounding Line
for Melt Blown PP Resin
Polypropylene (PP) reacting compounding is the main raw material for the melt blown fabric filter. USEON can provide solutions for the following:
- Complete Melt-blown PP Compounding Pelletizing Line
- Melt Blown Fabric Raw Material – PP Reacting Compounding
- Melt Blown Fabric Production Line
Table of Contents
PP Reacting Compounding Formula
PP powder with MFI 20~30, Anti-oxident, Calcium stearate, DTBP.
Meltblown PP Fabric Materials
with MFI 1200/1500/1800 g/10min (Condition 2.16kg, 230°C)
Flow Chart Description
Premixing -> Loader -> Feeding -> Twin Screw Compounding -> Piston Type Melt Filter -> Die Head -> Water Bath 1 -> Water Bath 2 -> Water Wiper -> Strand Pelletizer -> Classifier -> Transfer Silo -> Drying and Homogenization

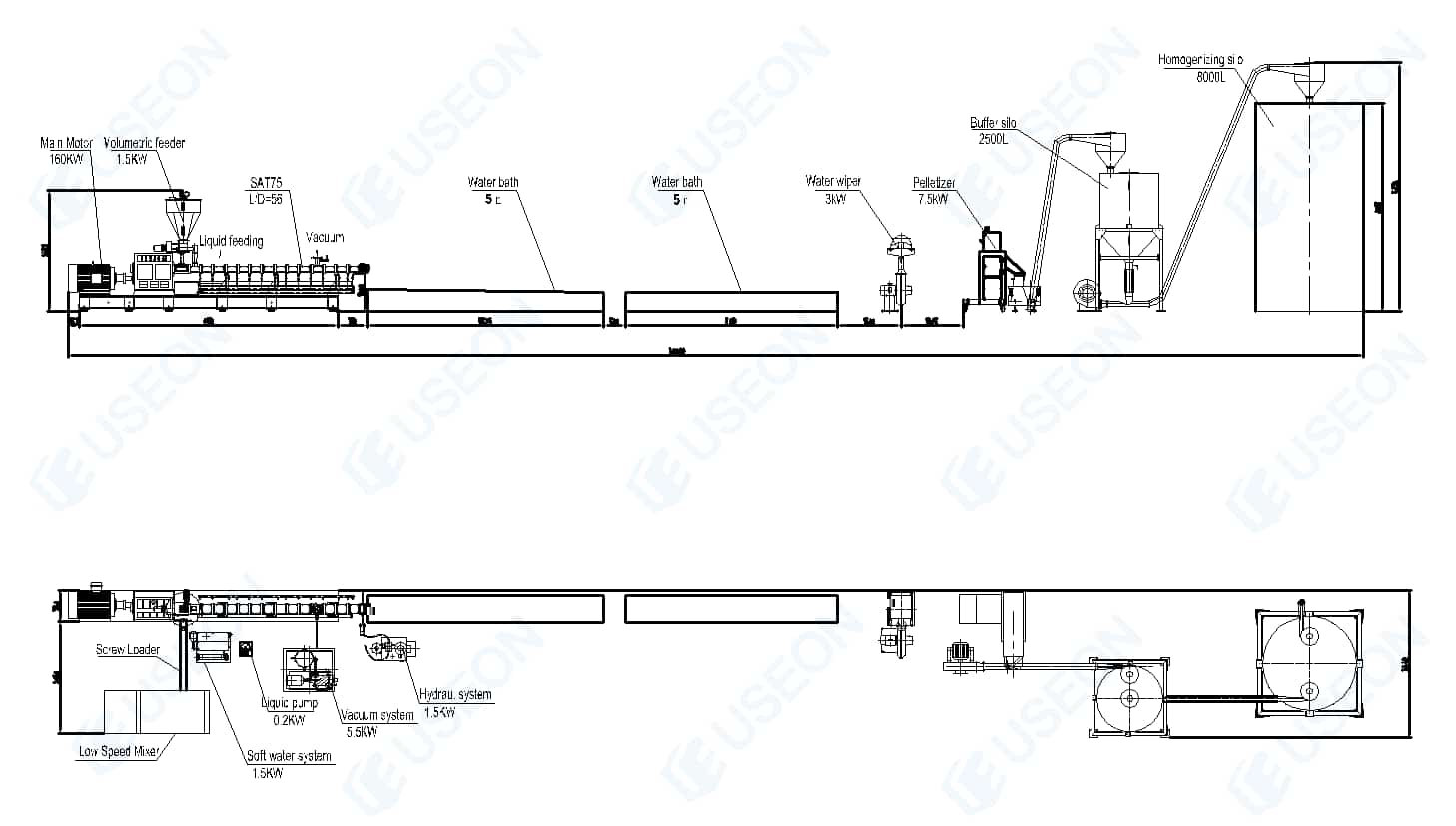

PP Reacting Compounding Line Layout
Technical Specifications of Extruder

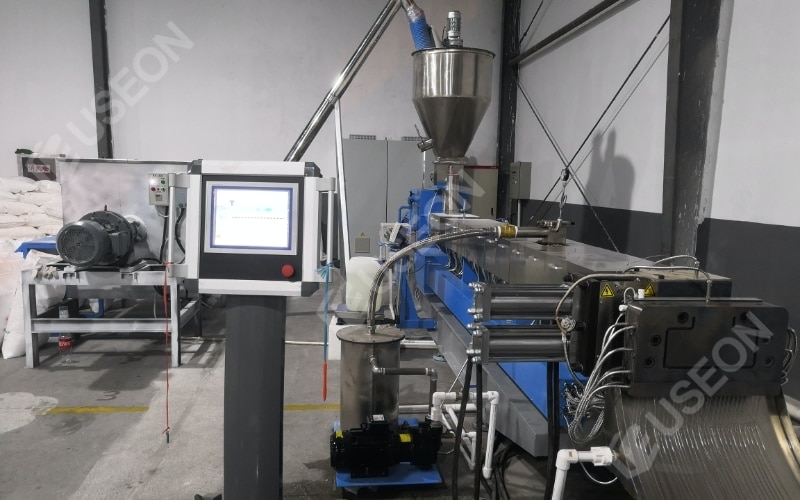

In this meltblown PP reacting compounding line, the extruder is our SAT twin screw extruder.
| Model | Diameter (mm) | Max. Speed (rpm) | Motor (kW) | L/D | Output (kg/hr) |
|---|---|---|---|---|---|
| SAT52 | 51.4 | 600 | 75 | 56 | 200~250 |
| SAT65 | 62.4 | 600 | 110 | 56 | 400~450 |
| SAT75 | 71.4 | 600 | 160 | 56 | 600~700 |

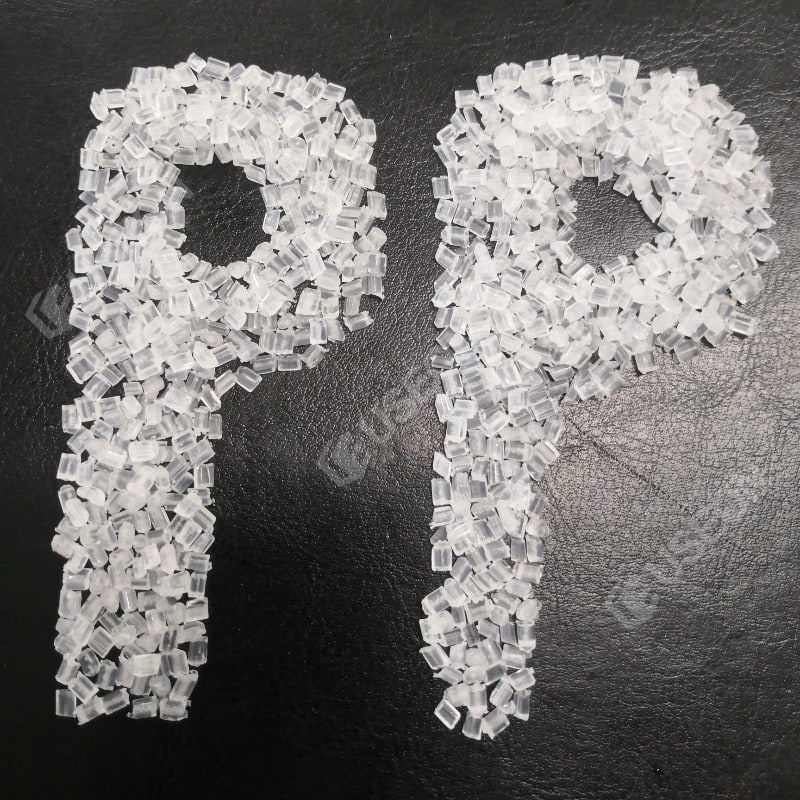

USEON Melt Blown PP Data Sheet
Type: PP
Grade: U-RP001
Features: Ultra-high fluidity, low volatility, narrow molecular weight distribution
Application: Melt Blown Fabric
General Index:
| Item | Property | Unit | Testing standard | Testing condition | Technical Index |
|---|---|---|---|---|---|
| 1 | Flow velocity | g/10min | GB/T3682 | 230℃ 2.16kg | 1500±50 |
| 2 | Melting point | ℃ | GB/T19466 | 10℃/min | 165 |
| 3 | Volatile content | % | GB/T2914 | 110℃ | ≤0.03 |
| 4 | Ash content | % | GB/T9345.1 | 850℃ | ≤0.2 |
